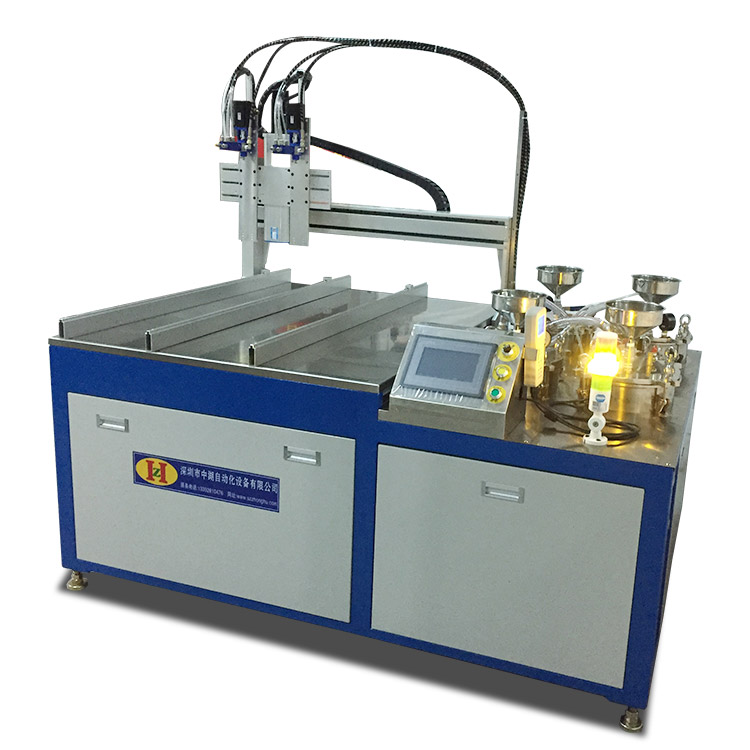

| Principle of operation：

1, the program editor: in-kind editing, and then Chen can be
2, will have been edited program storage, similar products can be transferred out.
3, irrigation head movement, the pump body (stepper motor drive) for the plastic
4. Movement trajectory: straight line. Curve. Point. Box. Round. W type, S type. Can take any irregular trajectory.
5, Z axis up and down movement with ball shaft screw rapid response.
6, choose the kind of glue, as long as the choice of control card like.

| Speed of Filling :
1, irrigation head running speed: 0-600mm / s
2, the machine trip: 800 * 800 * 100mm,
3, for the glue speed: 0.5-20 / s (irrigation head speed and glue for the speed of the combination of irrigation speed)

| Application product（in 800*900MM）
1, light bar categories: small modules, soft light, hard light, and so on
2, lighting categories: small modules, wall washer, spot lights, line lights and so on
3, electronic categories: waterproof power, transformers, circuit boards and so on
4, all kinds of non-standard type of irrigation

| Parameters:

A.10:1 to 2:1 glue configuration.

B. 1:1 glue configuration.

| Device Configuration:

| Features:

| Characteristics of rubber gear pump :
Gear pump structure is simple and compact, small size, light weight, good technology, cheap, self-absorption strong, not sensitive to oil pollution, speed range, impact resistance load, easy maintenance, reliable work. Gear pump with multi-stage sealing mechanism and the use of imported seals and imported gears (hardness of HRC62 degrees or more to ensure high wear resistance, long life);

The company gear pump also has the following characteristics:
1, high precision, variable, uninterrupted, long life of the fluid metering ratio core components;
2, the production process precision, wear-resistant corrosion, almost maintenance-free;
3, suitable for high and low viscosity and solid-liquid mixed fluid, for glue: epoxy, silicone, PU;
4, the use of stepper motor gear pump for the plastic, adjust the speed of the stepper motor to adjust the amount of glue.

Principle:
The principle of the gear pump is very simple, that is, its basic form is the same size of the two gears in a tight fit with each other within the shell of rotation, the shell of the internal similar to the "8" shape, the two gear mounted inside, The outer diameter of the gear and the sides of the gear are in close cooperation with the housing. The material from the extruder enters the middle of the two gears at the suction port and fills the space, moving along the housing as the teeth rotate, and finally discharging when the teeth are engaged.

| Characteristics of Three-axis Movement:
1, the operation is simple and convenient: touch screen display operation; all Chinese interface, the parameters of the record, display, alarm; for each product to provide the corresponding fixture, the workers training is simple, saving training time and training costs;
2, glue control precision: all key components are imported products, to ensure high speed, precision, while meeting the conditions of automated production under the high reliability requirements.

| Characteristics of glue-mixing part：

1, with plastic, plastic irrigation integration, automatic operation, a machine to achieve two functions.
2, the proportion of setting adjustment, plastic volume adjustable. Ready to use at any time, with high precision, on-demand ratio, saving glue.
3, the operation is simple and convenient, the program is simple to edit, easy to disassemble, directly to the A B two kinds of glue were placed in two corresponding barrels, when filling with plastic, workers only need to press the switch can be.
4, according to the performance of the glue, A bucket with a thermostat device, B plastic bucket sealed to prevent volatile, liquid level sensor device, when the glue below this level automatically alarm, add the corresponding glue
5. Easy to clean, AB glue mixing part of the mouth only the mixing tube, so the cleaning part of the mixing tube only, the other parts do not have to clean, if the get off work or to stop for a period of time only need to press the automatic cleaning button to stir Tube clean on the line, no supplies.

| Technical characteristics of the machine :
1, the proportion of any adjustable glue: not limited to the use of the ratio of 1: 1 of the glue, for this technical bottleneck we first break.
2, choose any glue supplier: because the machine has a smart matching glue function, not limited to 1: 1 glue.
3, for enterprises to save costs: a machine can replace multiple employees, a year can save the money out of the machine.
4, for enterprises to reduce the burden of management and recruitment. Reduce the burden on employees, administrators, management can focus more on the management of production; personnel recruitment staff also eliminates the "difficult" problem, a lot of hidden costs to reduce.
5, the company has a number of experienced design (10 years of plastic irrigation design and development experience) for the future maintenance of the machine, upgrade escort. In the production process can also give some suggestions.
6, the company product positioning clear. And the market of other companies with the same type of strategy is different, I Secretary adhering to the "all for the customer, for all customers, for all customers," the spirit of Seiko fine carving, high quality products, higher positioning market, relying on customer reputation based on the market. Do not seek short-term interests.
